Tired of flickering lights or dimming systems that just won’t behave right? You’re not alone. Without the right dimming tech, you’ll waste time, money, and patience. Let’s fix that with TRIAC dimming.

TRIAC dimming is a popular method for controlling light brightness, particularly in residential settings. It uses a TRIAC device in wall dimmers to adjust power flow by slicing the AC wave, dimming the light effectively without additional wiring. Originally for incandescent bulbs, it now supports many LED drivers, offering quiet, gradual dimming with standard 120V or 230V systems. While cost-effective and easy to deploy, compatibility is crucial; non-compatible LEDs may flicker or buzz. Ideal for simple setups, but advanced systems may benefit from options like 0-10V or DALI.

Ready to stop the flicker and get smooth, reliable dimming? Let’s dive in.

What Is TRIAC Dimming?

TRIAC dimming is a common method used to control the brightness of lights, especially in residential and commercial settings. TRIAC stands for Triode for Alternating Current. It’s a small device inside many traditional wall dimmers that controls the flow of power to the light fixture.

Instead of sending a full stream of electrical power to the light, the TRIAC cuts off part of the AC voltage wave. It does this rapidly—many times per second—so the bulb still looks like it’s on, just dimmer. The more of the wave it cuts, the less power the bulb receives, and the dimmer the light becomes.

Originally, this technology was made for incandescent bulbs. But now, many LED drivers are designed to work with TRIAC dimming too. It works best with standard 120V or 230V power systems, especially in homes and offices.

When LED lights are matched with the right TRIAC-compatible driver, the dimming is smooth and reliable. There’s no flickering, no buzzing, just simple brightness control with the same wall dimmer you’ve probably used for years.

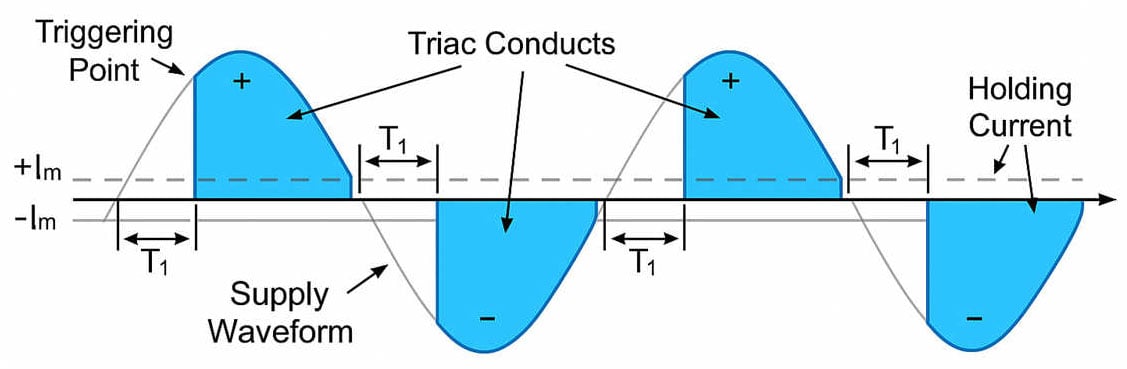

How Does A TRIAC Dimmer Work?

A TRIAC dimmer works by slicing the electrical power that reaches your light fixture. It doesn’t lower the voltage in a smooth curve—instead, it cuts part of each alternating current (AC) wave. This process is called leading-edge dimming.

Here’s what happens: every time the AC current goes through its cycle, the TRIAC holds off sending power until a set point. Once that point is reached, it suddenly switches on and lets the current flow. By delaying the start of each wave, it reduces how much power actually gets to the light. Less power means a dimmer light.

The later in the wave it turns on, the dimmer the light becomes. The timing of this switch controls the brightness. It does this many times per second, fast enough that your eyes only see the change in brightness—not the on-off flicker.

But here’s the catch: not all LED drivers can handle this chopped-up power. If the driver isn’t compatible with TRIAC dimming, your LED might flicker, buzz, or not dim properly at all. So, for best results, you need LED lights and drivers that are specifically made to work with TRIAC dimmers.

Is TRIAC Dimming Good?

TRIAC dimming is a solid choice—especially in residential settings or retrofits where traditional wall dimmers already exist. It offers quiet, gradual dimming and doesn’t require any additional control wiring. It’s cost-effective and widely available. When paired with compatible LED drivers, TRIAC dimming delivers a seamless dimming experience. However, not every LED product plays nicely with TRIAC dimming. You’ve got to check compatibility. I’ve seen folks plug in a non-TRIAC-compatible fixture and end up with a flickering mess.

Advantages of TRIAC Dimming

TRIAC dimming stands out for its ease of use and practicality. One of the biggest benefits is that it works with standard AC wiring. You don’t need to run extra low-voltage control wires, which saves both time and money during installation. This makes it a solid choice for renovations or upgrades in homes and small businesses.

Another major advantage is that TRIAC dimmers are everywhere. They’ve been used for decades, so they’re affordable and readily available. Most electricians know how to install and troubleshoot them, which cuts down on labor costs and avoids complicated training or setup.

For dimmable LED fixtures that are designed to work with TRIAC, the dimming is usually smooth and consistent. There’s no complicated programming required. You simply install a compatible LED driver and a standard wall dimmer, and you’re ready to go.

Compared to other systems like 0-10V or DALI, TRIAC dimming is more cost-effective and simpler to deploy, especially in small-scale settings. It’s a mature technology with a long track record of reliable performance, making it a go-to solution for straightforward lighting control.

Disadvantages of TRIAC Dimming

TRIAC dimming comes with a few drawbacks that are worth considering before choosing it for your lighting project. The biggest problem is compatibility. Not all LED drivers are designed to work with the chopped waveform that TRIAC dimmers produce. If the driver isn’t built for it, the light might flicker, buzz, or fail to dim properly. In some cases, it may not dim at all.

Another issue is the limited dimming range. TRIAC systems often can’t dim as low as other options like 0-10V or DALI. Even at the lowest setting, the light might still be too bright for spaces where very soft lighting is needed, like bedrooms or theaters.

For larger installations, TRIAC dimming can also become tricky. It’s hard to sync multiple dimmers across different zones, which may result in uneven lighting levels. Since TRIAC works by cutting the voltage signal, there’s no feedback control or central monitoring, making it less suitable for complex setups or buildings that need precise light management.

In short, while TRIAC dimming works great in small, simple setups, it may fall short in advanced or sensitive lighting applications.

Should I Choose TRIAC Dimming?

If you’re working on a home renovation, office upgrade, or any space where you want to keep the existing wiring and just swap in dimmable LEDs, TRIAC dimming is a great choice. But only if your fixtures or drivers are explicitly TRIAC-compatible. It’s perfect for single-room use or small zones. But if you’re building a new commercial space or need full lighting control, you might want to consider 0-10V or DALI dimming systems instead.

Is TRIAC Dimming Leading Or Trailing Edge?

TRIAC dimming is typically leading-edge. This means it cuts off the start of each AC cycle to reduce power. However, some newer digital TRIAC dimmers can mimic trailing-edge behavior, which is better suited to many LED drivers.

What Is Leading-Edge Dimming?

Leading-edge dimming is the original dimming method used with incandescent and halogen lamps. It works by chopping the front end of the AC waveform, reducing voltage. It’s reliable, inexpensive, and still widely used today—especially with TRIAC dimmers.

What Is Trailing-Edge Dimming?

Trailing-edge dimming, also called reverse phase dimming, cuts the back end of the AC wave. It’s quieter and more compatible with modern LED drivers. It offers smoother dimming, especially at lower brightness levels, and reduces buzzing or flickering.

TRIAC Dimming vs 0/1-10V Dimming

TRIAC dimming works directly with line voltage. It doesn’t need any extra control wires, which makes it ideal for retrofitting older systems. If you’re upgrading from incandescent or halogen setups, this is often the quickest and most cost-effective route. TRIAC dimmers are built into standard wall switches, so you don’t need new controls or wiring infrastructure.

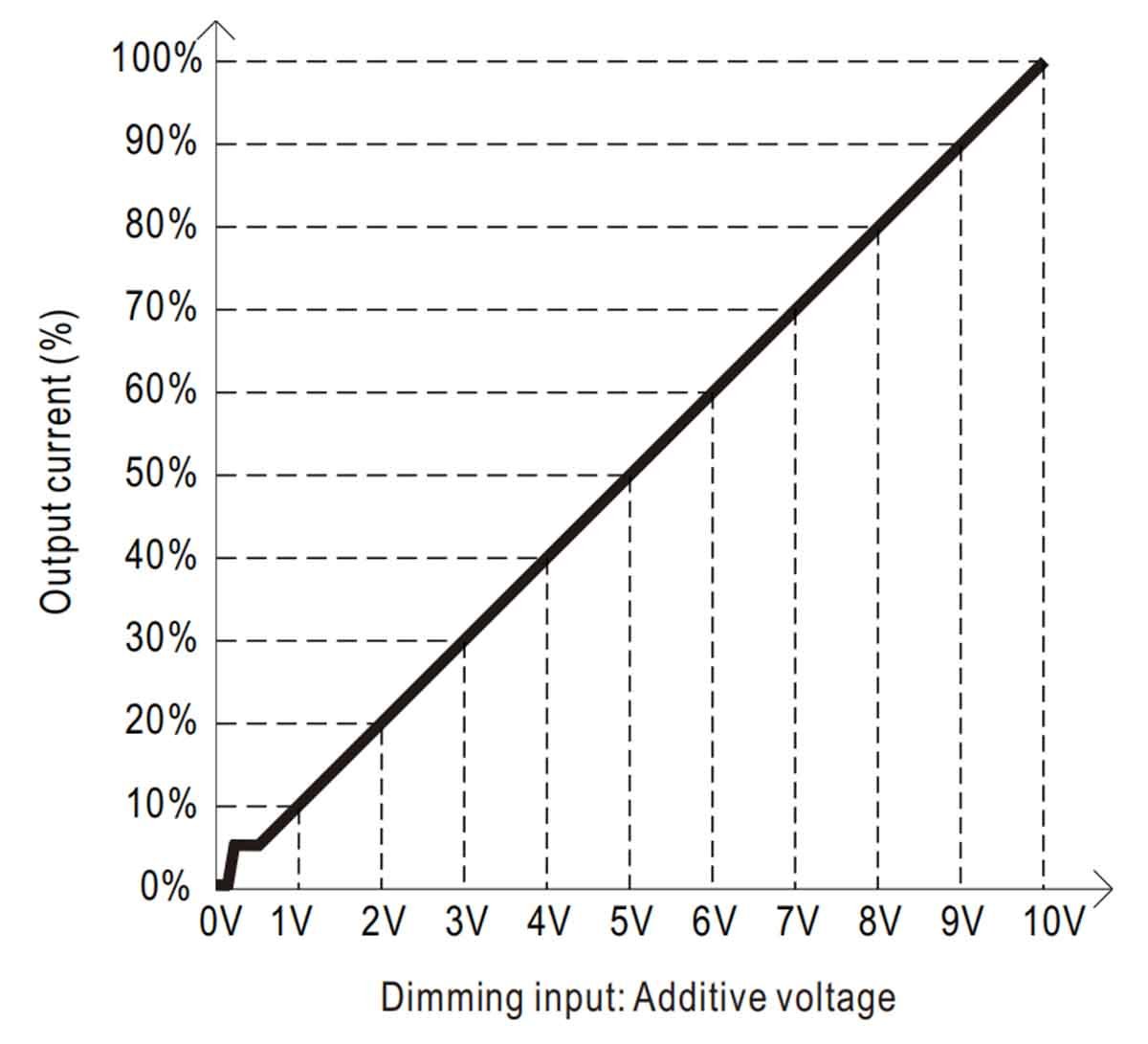

0/1-10V dimming, on the other hand, uses a separate low-voltage signal to control brightness. This method sends a voltage between 0 and 10 volts to the driver, with 0V being the dimmest setting and 10V the brightest. This gives you finer control over dimming levels and more consistent performance across multiple fixtures. It’s especially useful for commercial projects where lighting zones, automation, and deep dimming are important.

The trade-off? 0/1-10V systems need extra control wires and may require special dimming modules or control panels. But the benefits include better LED compatibility, smoother dimming, and more advanced lighting control features. TRIAC is simpler and cheaper to install. 0/1-10V gives you more control but needs more upfront planning and investment.

TRIAC Dimming vs PWM Dimming

TRIAC dimming works by chopping the AC waveform to reduce the voltage delivered to the light. It’s easy to install because it uses the existing AC power lines and doesn’t need additional control wiring. This makes it a popular choice for residential and small commercial retrofits. However, TRIAC dimming isn’t always the best when it comes to dimming precision. At low light levels, some LED lights may flicker, buzz, or fail to dim smoothly if the driver isn’t fully compatible.

PWM dimming, which stands for Pulse Width Modulation, takes a different approach. It rapidly turns the LED on and off at a high frequency—so fast that the human eye can’t detect the flicker. By adjusting how long the LED stays on versus off in each cycle, the brightness can be controlled very precisely. PWM delivers smooth, consistent dimming across the entire brightness range, even down to very low levels.

The downside of PWM is that it requires special LED drivers and a compatible dimming controller. It’s not a plug-and-play solution like TRIAC and may involve more setup. But for projects where dimming performance really matters—like architectural lighting, retail, or photography—PWM is often the better choice.

So, if you want simplicity and lower cost, go with TRIAC. If your project demands fine-tuned control and flicker-free dimming, PWM is the way to go.

Below is a comparison Table: TRIAC Dimming vs 0/1-10V Dimming vs PWM Dimming

Feature	TRIAC Dimming	0/1-10V Dimming	PWM Dimming
Wiring	Uses standard AC wiring; no extra control wires needed	Requires additional low-voltage control wires	Requires dedicated drivers and control systems
Installation	Easy to retrofit; plug-and-play for existing setups	More complex; needs planning and separate dimming modules	Requires compatible drivers and configuration
Cost	Low installation cost	Higher initial cost due to extra components	Higher cost for setup and components
Dimming Range	Limited dimming range; may not reach very low brightness	Wide dimming range; fine control from 0V to 10V	Full-range, smooth dimming even at low light levels
Compatibility with LEDs	Must use TRIAC-compatible LED drivers	Generally broad compatibility with dimmable LED drivers	Requires specific PWM-compatible LED drivers
Dimming Smoothness	May flicker or buzz at low levels if not fully compatible	Smooth dimming with minimal flicker	Very smooth and flicker-free dimming across full range
Application Suitability	Ideal for homes, small businesses, and retrofits	Better for commercial zones, automation, and zoning setups	Best for architectural, retail, or precision lighting
Control Type	AC phase-cut dimming (leading-edge)	Analog low-voltage control (0V–10V)	Digital signal via pulse-width modulation
Best For	Budget-friendly upgrades and basic dimming needs	Larger, controlled installations needing precise zoning	High-end applications needing top-tier dimming performance

Applications of TRIAC Dimming

TRIAC dimming works best in places where simplicity, cost savings, and ease of installation matter most. That’s why it’s commonly used in homes, hotel rooms, restaurants, retail shops, and other smaller commercial spaces. If you’ve got an existing setup with standard wall dimmers and AC power lines, TRIAC dimming can often be added without any major rewiring. This makes it ideal for retrofit projects, where tearing out walls just to run control wires isn’t an option.

You’ll usually see TRIAC dimming used with LED downlights, recessed ceiling fixtures, track lighting, or decorative fixtures. It’s a smart way to add ambiance and energy savings without a lot of fuss.

In restaurants and hospitality spaces, TRIAC dimmers help create a cozy, welcoming atmosphere. In homes, they allow easy brightness control in living rooms, bedrooms, kitchens, and hallways.

If you’re working within a tight budget or you simply want an upgrade that doesn’t require complex changes, TRIAC dimming is a solid choice. Just one thing to watch out for—make sure the LED drivers or fixtures are marked as TRIAC dimmable. If not, you might run into flickering, buzzing, or failure to dim properly.

Conclusion

In conclusion, TRIAC dimming is a practical, budget-friendly dimming method—especially for small-scale projects. It works best when you match the dimmer with compatible LED drivers. Know your application, confirm compatibility, and TRIAC can deliver smooth, simple dimming without hassle.
